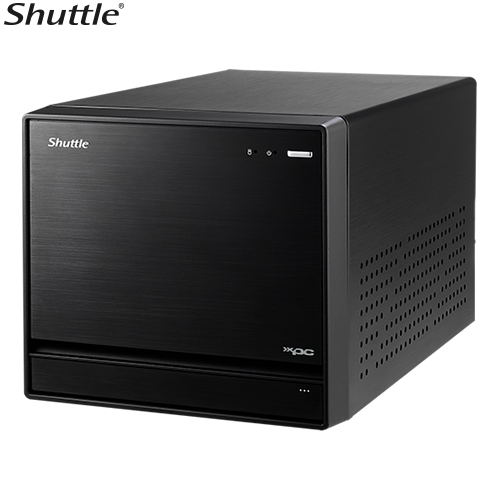

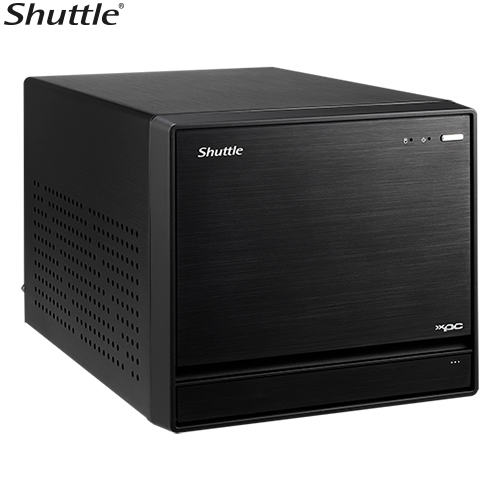

Shuttle XPC cube SH570R8 is built for data-intensive, multi-tasking workloads. Supports the latest IntelĀ® 11th Gen Core processors, integrated IntelĀ® Xe engine, dual DDR4-3200 high-speed memory, it offers fast and reliable performance for professional users of demanding software applications. Featuring expandability to accommodate up to four 3.5-inch hard drives and PCI-E 4.0×16 for a graphic card or other add-on cards expansion makes the SH570R8 suitable for content creators, media streamers, and professional designers. Designed with display flexibility and productivity, the SH570R8 supports up to three independent displays via HDMI 2.0 and DisplayPort 1.4.
Specification
| FORM FACTOR | Shuttle Form factor |
|---|---|
| PROCESSOR | Support IntelĀ® 10th/11th generation Coreā¢ i3/i5/i7, PentiumĀ®, CeleronĀ®125W LGA1200 CPU |
| CHIPSET | Intel H570 express chipset |
| MEMORY | (4)DDR4 3200 (11th CPU only)MHz / 2933MHz / 2666MHz support, dual channel up to 128GB (32GB*4) |
| VIDEO OUTPUT | (1)HDMI + (2)DisplayPort support triple independent display 4K/60Hz playback (With Integrated Graphic in CPU) |
| AUDIO | Realtek ALC662/ALC897 5.1 Channel high definition audio |
| ETHERNET | Intel i211AT + i219LM 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function Support Teaming function |
| STORAGE INTERFACE | SATA 6.0Gb/s interface |
| ONBOARD CONNECTORS | (2)4 Pin fan connector (4)SATA 6 connector (1) ATX main power (2*10) (1) ATX 12V power (2*2) (1) 1X4 USB 2.0 header (1) RS232 header (1) VGA header (1) Front AUDIO header (2) Front USB FFC header |

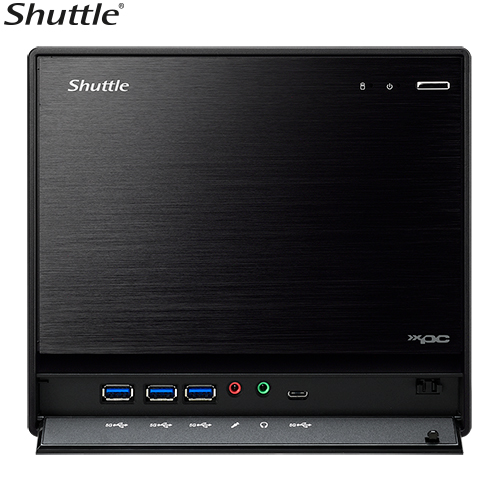

| FRONT PANEL | (3) USB 3.2 Gen 1 Port (1) USB 3.2 Gen 1 type-C Port (1) Microphone-In (1) SPK-Out (1) Power LED (1) HDD LED (1) Power-On button |

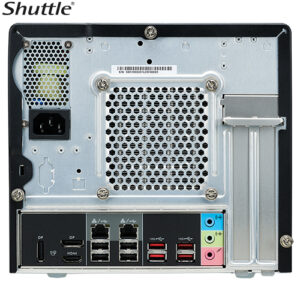

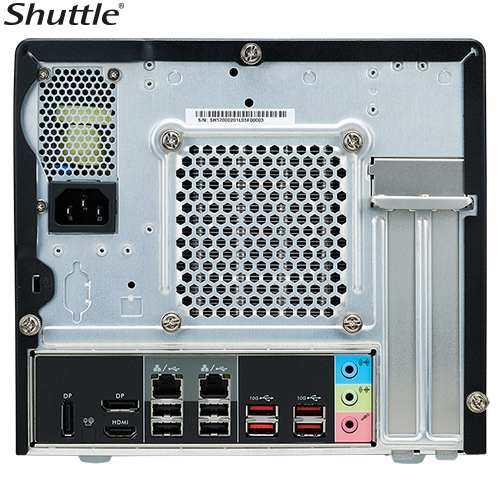

| BACK PANEL | (4) USB 2.0 Port (4) USB 3.2 Gen 2 Port (2)LAN (1)HDMI port (2)Display port (1)Audio Mic in (1)Audio Line in (1)Audio SPK out (1)Clear CMOS button (3)Antenna Hole |
| DRIVE BAYS | (4) 3.5″/2.5″ HDD bay |
| DIMENSIONS | 332(L) x 216(W) x 198(H) mm |
| POWER | 80 Plus 500W power supply Input: AC100V-240Vļ¼60Hz-50Hzļ¼8A-4A Support 80 PLUS Gold |
| ACCESSORIES | XPC Multi-Language quick guide XPC DVD Driver SATA Cable CPU Thermal Grease Power cord Screw package |
| EXPANSION SLOT | (1) PCI-E X16 Gen 4.0 slot (1) PCI-E X4 Gen 3.0 slot (1) M.2 2280 type M key socket (1) M.2 2230 type E key socket |
| OS SUPPORT | Windows 10 64bit Linux |
| CERTIFICATION | Safety certification : CB , BSMI , cTUVus EMI certification : FCC , CE , BSMI , RCM , VCCI |
